KTM 690 / 701 Enduro Cruise Control EURO4 Cruise Kit

Compatibility

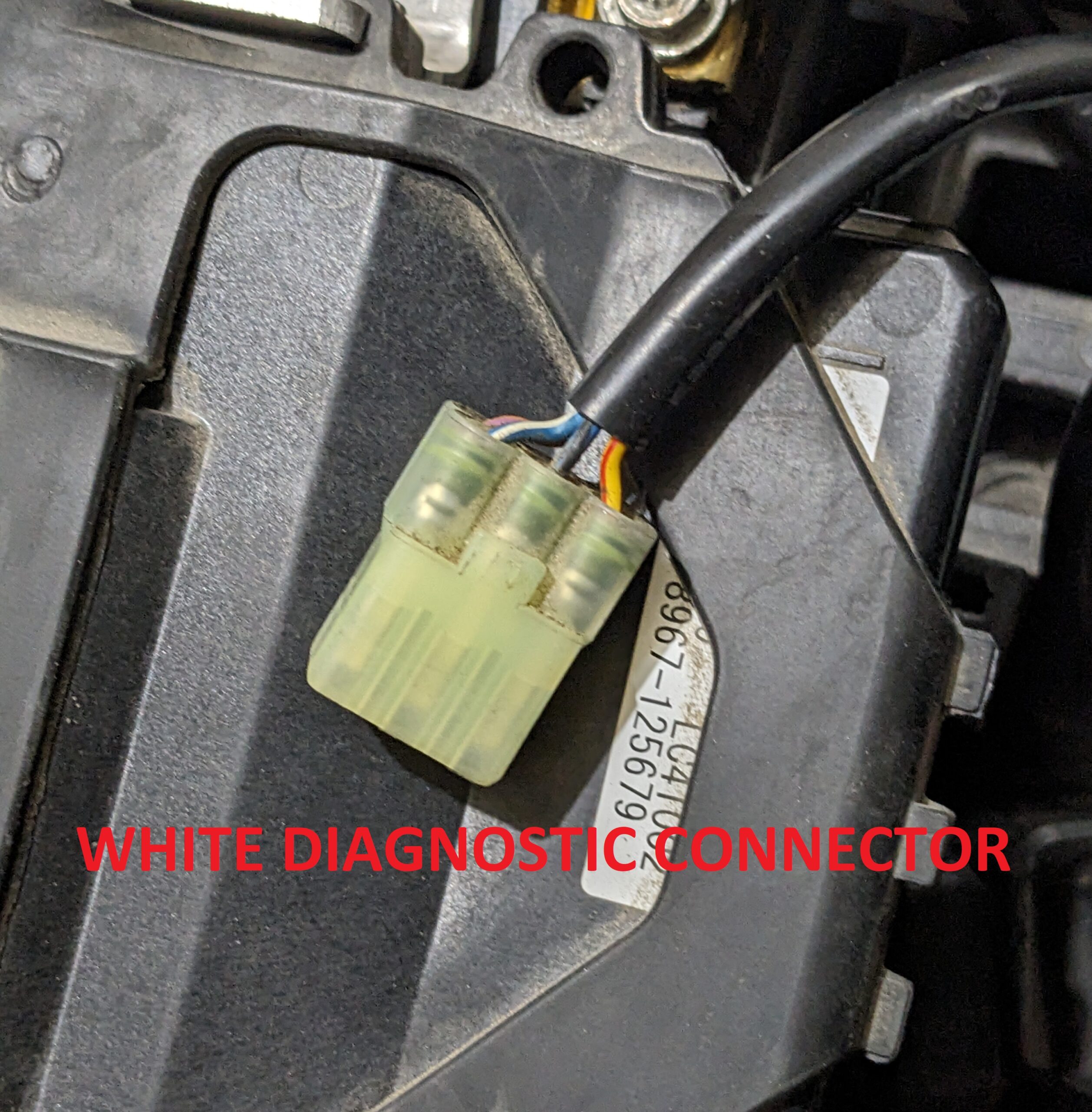

• 2014 – 2024 KTM 690 Enduro / SMC with white diagnostic connector
• 2021 – 2024 Husqvarna 701 with white diagnostic connector
• 2016 – 2020 Husqvarna 701 with white diagnostic connector ***RPM MODE ONLY
• 2022 – 2024 GasGas ES 700 with white diagnostic connector

***RPM MODE ONLY. Cruise control will hold speed by RPM. These kits have no ability to increase or decrease speed. Set and Cancel only. We recommend these kits ship with the 2 button soft touch or a custom solution.

All North American Enduro bikes are currently EURO4

Choice of switch

Soft Touch Switch

This new soft touch switch is marked with set and cancel icons. Best for budgets and OEM looks, No RESUME function. Mounts on a standard 22mm diameter bar. Watertight and made from durable PA6+20%GF. See product page for dimensions. 50cm length, also comes in a 80cm length for bikes with risers.

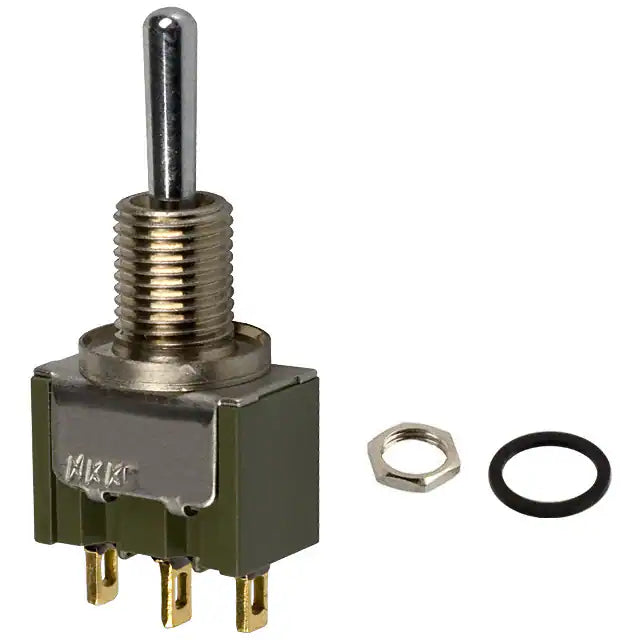

Micro Toggle Switch

A Small toggle switch for those looking at simple installs. 2 Function switch has Set and Cancel functions on momentary toggle. Includes 1/4″ mounting plate and dress nut. No RESUME function. 50cm standard length, Custom lengths on request.

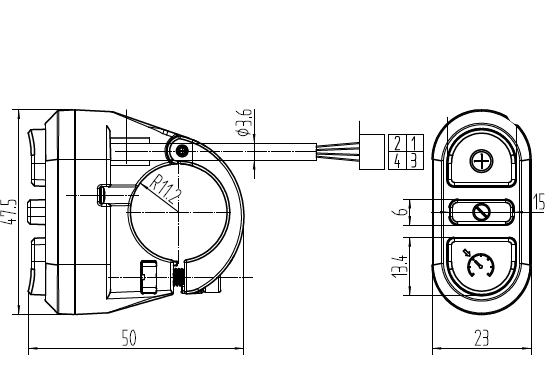

Triple Button Switch

A 3 button switch for controlling the cruise functions is included. Fully watertight and durable. Mounts directly to standard 22mm handlebars with a fully opening bracket. This option provides 3 buttons.

• Resume / Increase
• Cancel
• SET/ Decrease

LED lights and other upgrade compatibility

This kit is 100% compatible with any aftermarket lights and kits.

Cruise Stop Conditions

We know it’s paramount on motorbikes to quickly kill the cruise control in as many situations as possible. Our module will disengage cruise control for any one of the following conditions. The 690 bikes CANBUS has limited information and thus we can only provide the following stop conditions:

• Front or Rear Brake Depressed
• Any one of the required CANBUS packets are not updated within 1000 milliseconds
• A difference of 10% between the front and rear wheel speeds

Configuration

The module has a weather tight USB-C connector for changing various settings such as speed increment size, PID gain, and throttle limits.

Diagnostic Port / Offroad Module

This kit uses the diagnostic port of your bike. If you want a second port for OBD and Off Road dongles, a splitter will be needed

Also see our offroad software addon which can also enable the offroad mode without the purchase of a seperate dongle.

Install Difficulty

To install this kit you must remove the tank. About 1 -2 hours install time with proper tools. T-harness will override the throttle signals and diagnostic connector will collect important speed data. For this 690 bike, an additional T-Tap is required for the brake wire.

Manual /  Install

Click here for PDF Installation manual

Instalar video en español cortesía de: FuelDongles.ES

Instalar video en español cortesía de: FuelDongles.ES

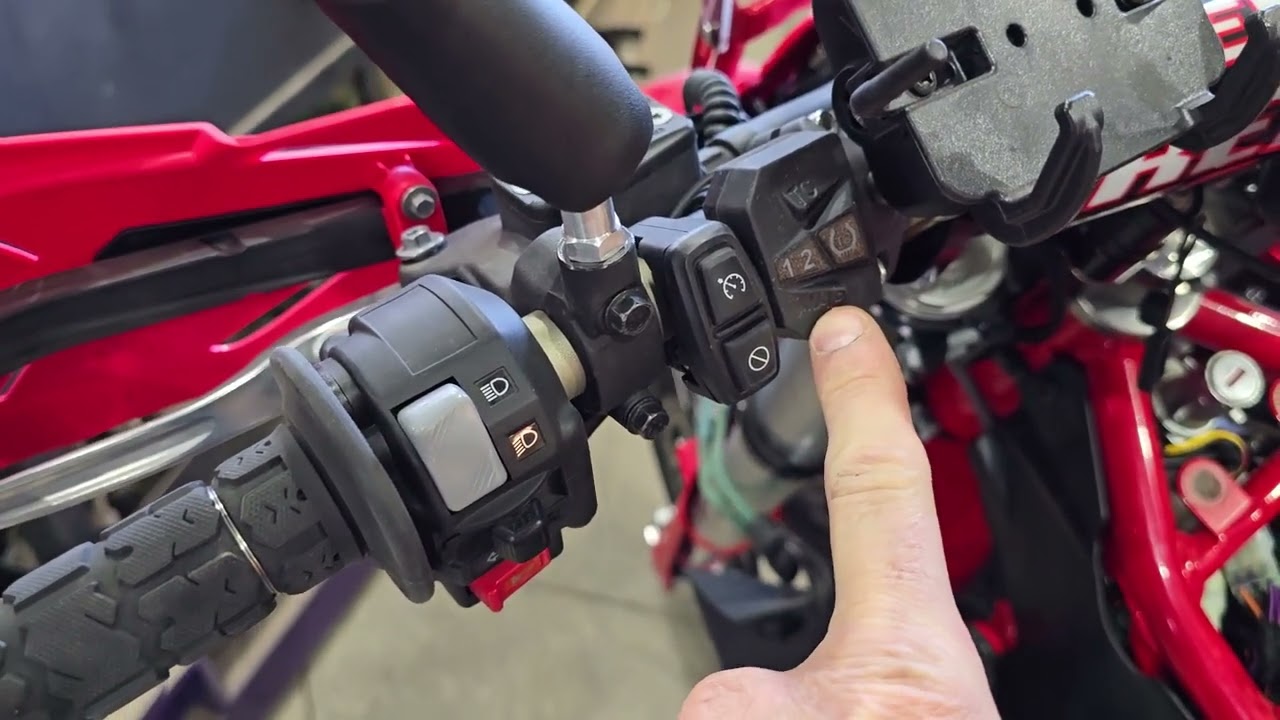

Gas Gas 700 Review / Install
