KTM 690 / 701 Enduro Cruise Control EURO5 Cruise Kit

Compatibility

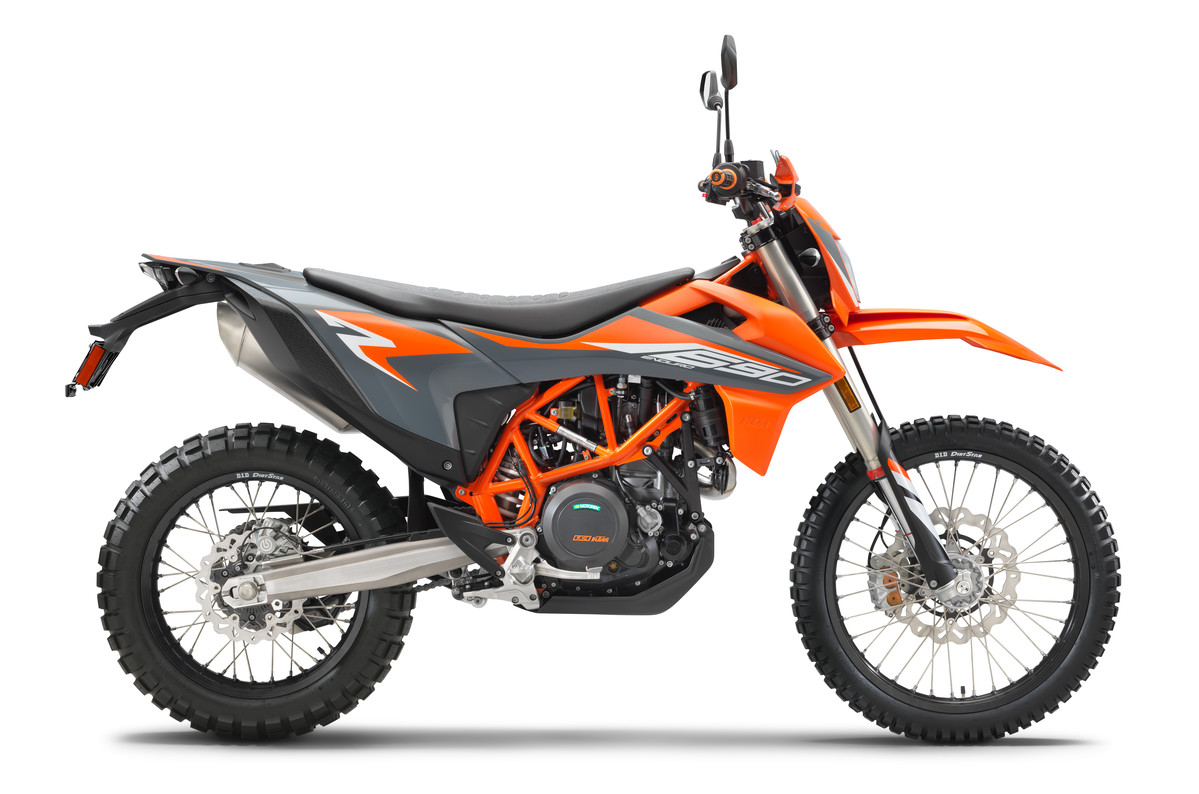

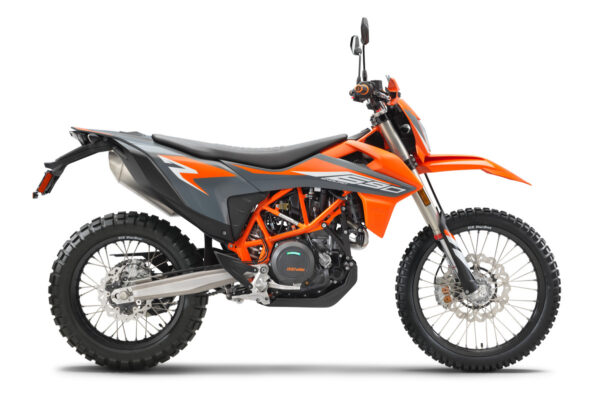

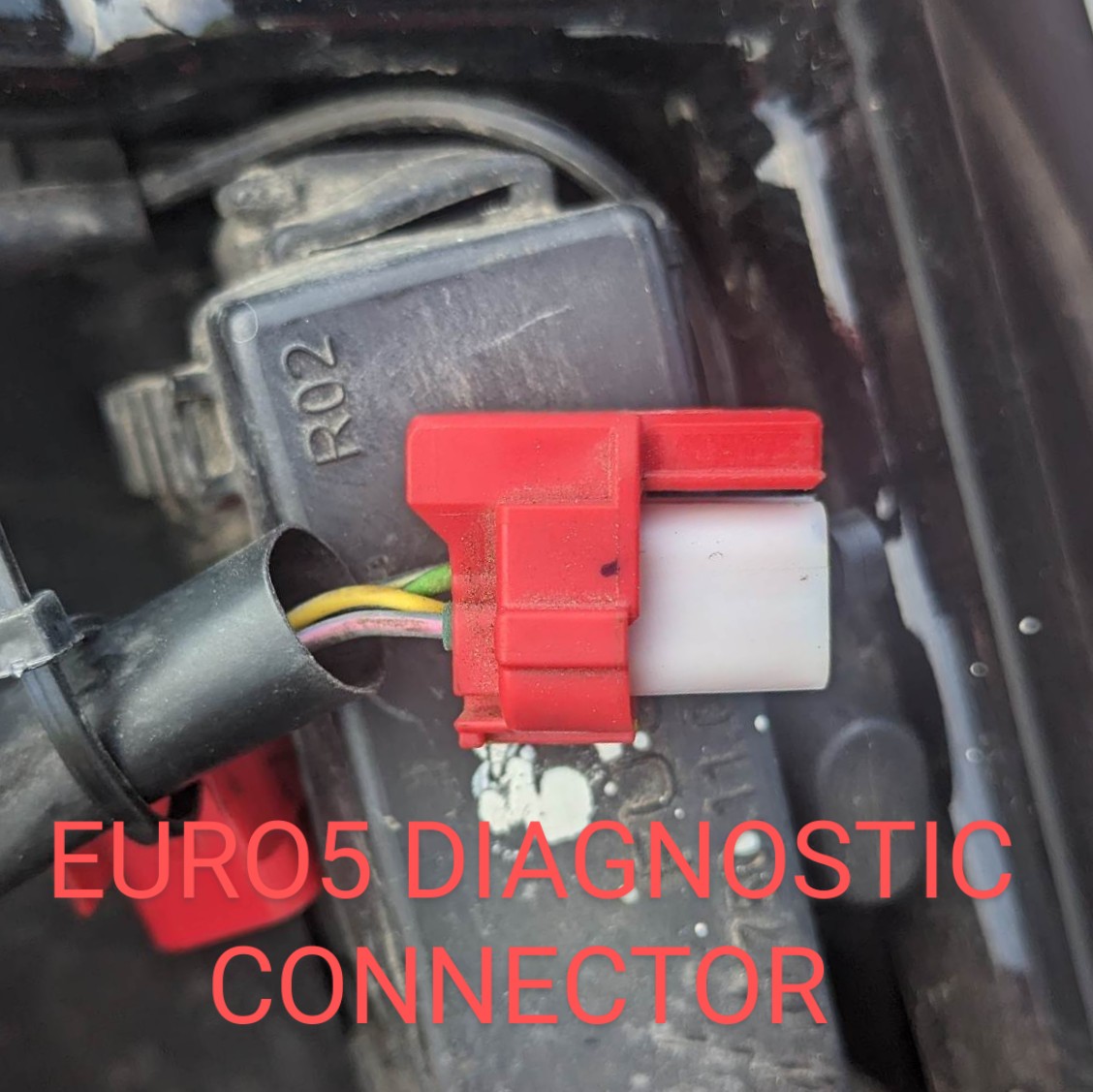

• 2021+ KTM 690 Enduro / SMC with red EURO5 diagnostic connector
• 2020+ Husqvarna 701 Enduro with red EURO5 diagnostic connector
• 2022 – 2024 GasGas ES 700 with red EURO5 diagnostic connector

All North American Bikes are currently EURO4. Please order this kit.

Choice of switch

Soft Touch Switch

This new soft touch switch is marked with set and cancel icons. Best for budgets and OEM looks, No RESUME function. Mounts on a standard 22mm diameter bar. Watertight and made from durable PA6+20%GF. See product page for dimensions. 50cm length, also comes in a 80cm length for bikes with risers.

Micro Toggle

A Small toggle switch for those looking at simple installs. 2 Function switch has Set and Cancel functions on momentary toggle. Includes 1/4″ mounting plate and dress nut. No RESUME function. 50cm standard length, Custom lengths on request.

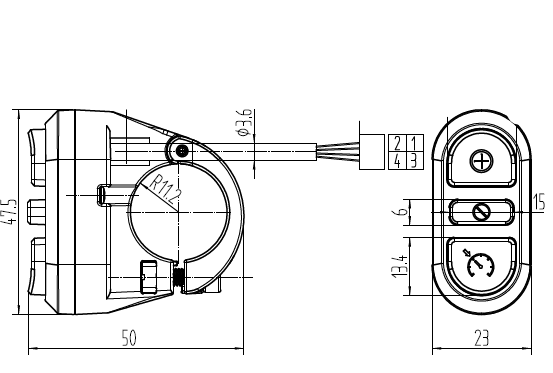

Triple Button Switch

A 3 button switch for controlling the cruise functions is included. Fully watertight and durable. Mounts directly to standard 22mm handlebars with a fully opening bracket. This option provides 3 buttons.

• Resume / Increase
• Cancel
• SET/ Decrease

LED lights and other upgrade compatibility

This kit is 100% compatible with any aftermarket lights and kits. No wire splicing or messing with brake wires.

Cruise Stop Conditions

We know it’s paramount on motorbikes to quickly kill the cruise control in as many situations as possible. Our module will disengage cruise control for any one of the following conditions:

• Engine RPM rises above 8000
• Front Brake Depressed*
• Clutch lever is pulled
• Bike transmission is in first gear or neutral
• Any one of the required CANBUS packets are not updated within 1000 milliseconds
• A difference of 10% between the front and rear wheel speeds
• *Rear Brake only supported with optional wire tap


Configuration

The module has a weather tight USB-C connector for changing various settings such as speed increment size, PID gain, and throttle limits.

Diagnostic Port / Offroad Module

This kit uses the diagnostic port of your bike. If you want a second port for OBD and Off Road dongles, a splitter will be needed

Also see our offroad software addon which can also enable the offroad mode without the purchase of a seperate dongle.

Manual /  Install

Click here for PDF Installation manual

Instalar video en español cortesía de: FuelDongles.ES
